YB-12 0.4 Prefabricated Containerized Distribution Transformer

Product Introduction

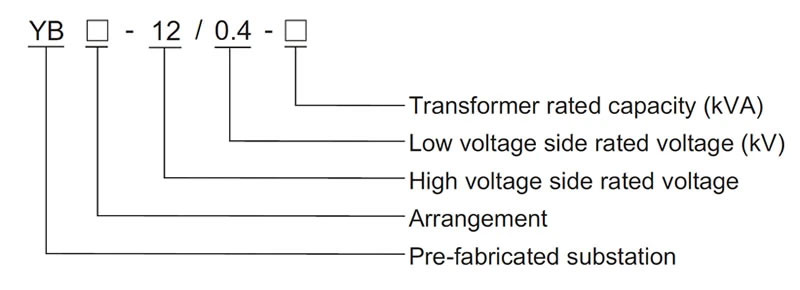

YB-12/0.4 transformer distribution/ prefabricated substation









Product Description



YB series substation is a kind of compact power distribution device that integrates high voltage electrical equipment, transformer, and low voltage electrical equipment. It can be used in high-rise buildings, building in urban and rural areas, residential communities, high-tech development areas, small and medium-size factories. mining areas, oil fields, temporary construction sites, and other premises. It also can be used for acceptance and distribution of power in the power distribution systems of 6-15KV, 50HZ (60HZ), ring main power distribution system, and double power supply or radiate terminal power distribution system.





Product features



High integrity, small size, compact structure, safe and reliable operation, convenient maintenance, portable, etc. Compared with conventional civil-engineering substations, in the same capacity, the prefabricated combined substation needs only 1/10-1/15 floor area. So that the construction expense is reduced.





Technical Parameters



Name	Unit	HV equipment	Transformer	LV equipment
Rated voltage	kV	11/20/33	(11/20/33)/0.4	0.4
Rated current	A	630	depend on kVA	Less than 4000
Frequency	Hz	50
Rated capacity	kVA	50-3200
Prf withstand	kV	42/50/75/95		2.5
BIL	kV	75/125/170/185
Crust protection grade		IP33/IP42/IP67	Oil type 55 Dry type 65	IP23/IP33/IP54
Noisy Grade	dB
Appearance dimensions	mm	According to primacy wiring circuit schema





Applicable Conditions



• Temperature range: -25 °C to +40 °C.
• Altitude: ≤ 1000 m, and the altitude can be up to 3000 m if special transformer and low voltage components are used.
• Vertical gradient: ≤ 5°.
• Workplaces should be free of violent vibration & shock, conductive dust, explosive danger, erosive metals and electrical apparatus elements.
• Air humidity: ≤ 90% (+25 °C).
• Outdoor wind speed: ≤ 35 m/s.

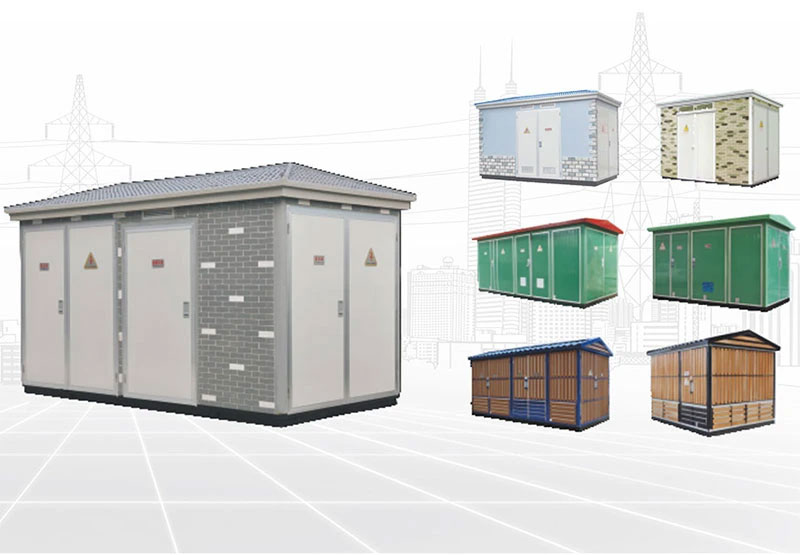

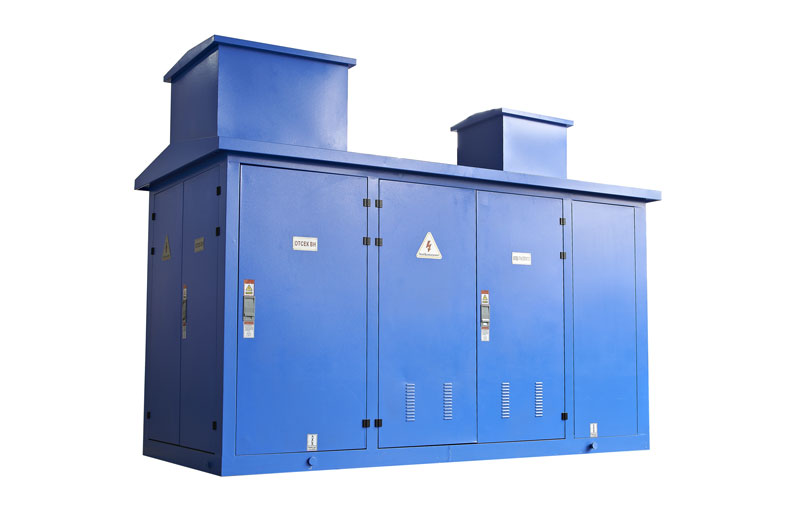

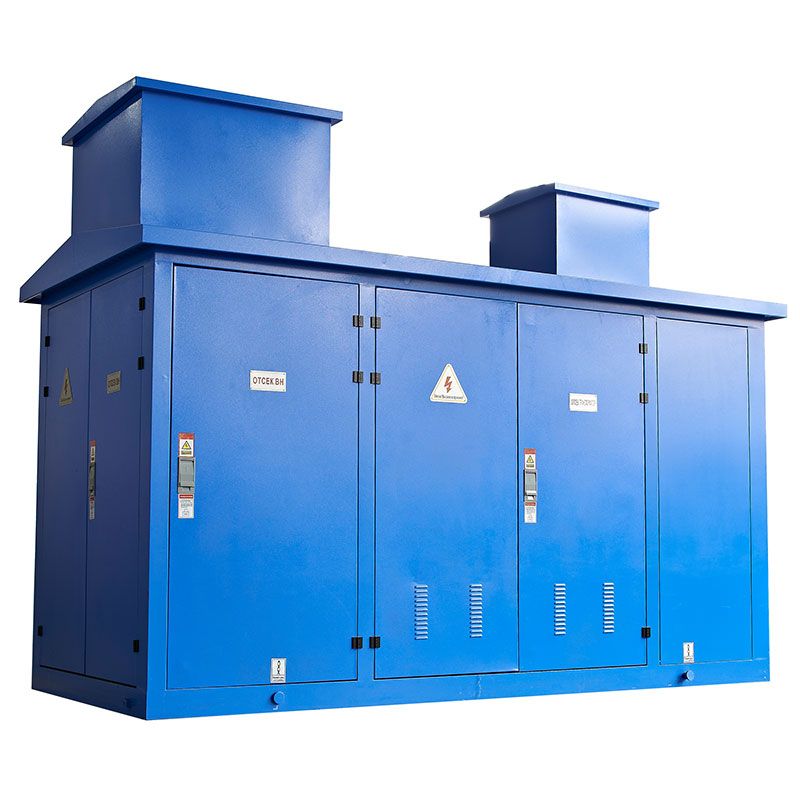

Product Photo

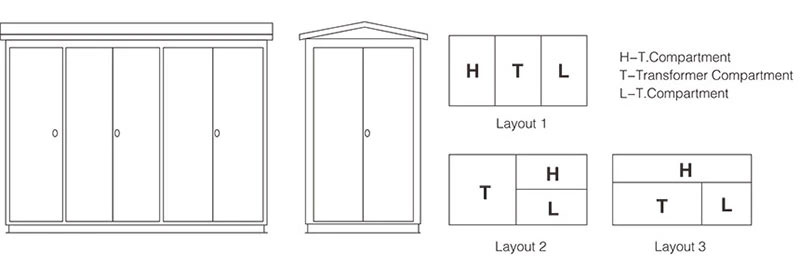

Schematic Diagram of Structure







Installation



The manufacturer can provide the foundation layout for their modular substation. The customer or user can design the foundation by themselves, but the layout need to be provided for manufacturer.

The lightning conductors need to pre-lay in side or around of the foundation of the modular substation. The ground connection and lightning protection of the transformer can be jointly used as one grounding system. The grounding cables to the foundation platform should be not less than two lines and the grounding resistance should be guaranteed to be less than or equal to 4 Ohm.(R≤4Ω)

For water proof, the gap between the modular substation and the foundation should be sealed with the cement concrete.





Company Information





Honle Group Co., Ltd. which is specialized in producing, developing and marketing power transmission and distribution products. The company is established in 1998, which is located in Wenzhou city, Zhejiang province, China.
Our main products are including switchgear, ring main unit, transformer, voltage stabilizer, load break switch, SF6/vacuum circuit breaker, substation, CT and PT etc. Our product has passed  ISO9001 and CE certificate.
We have a professional technical team which can provide you with full design solution and technical support.

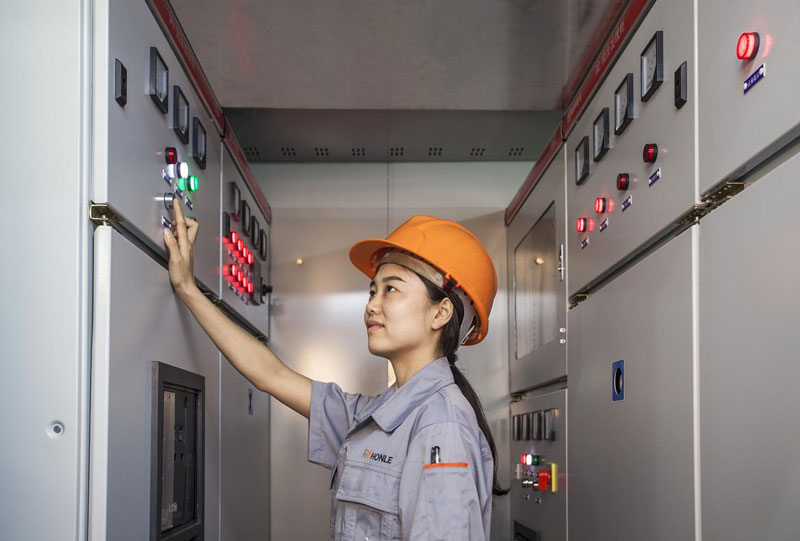

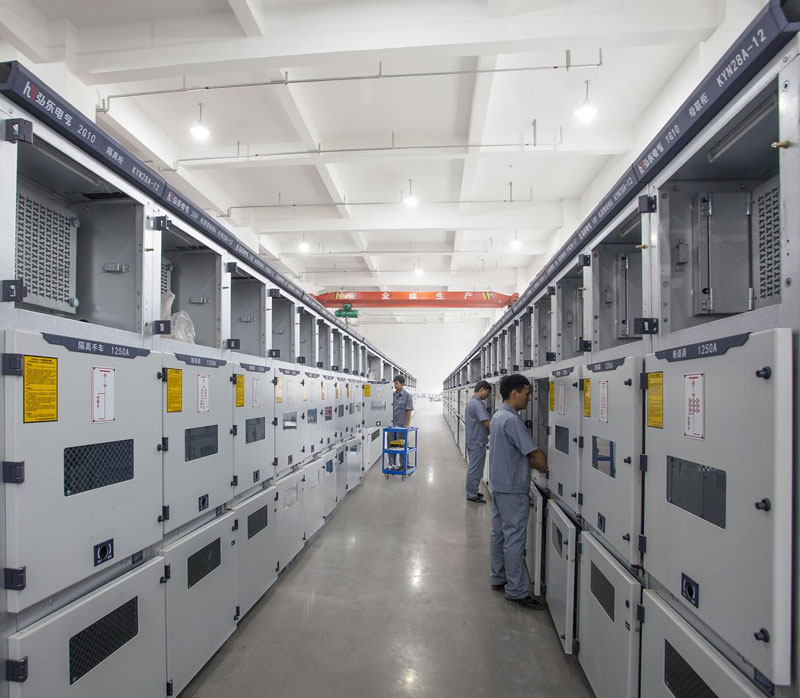

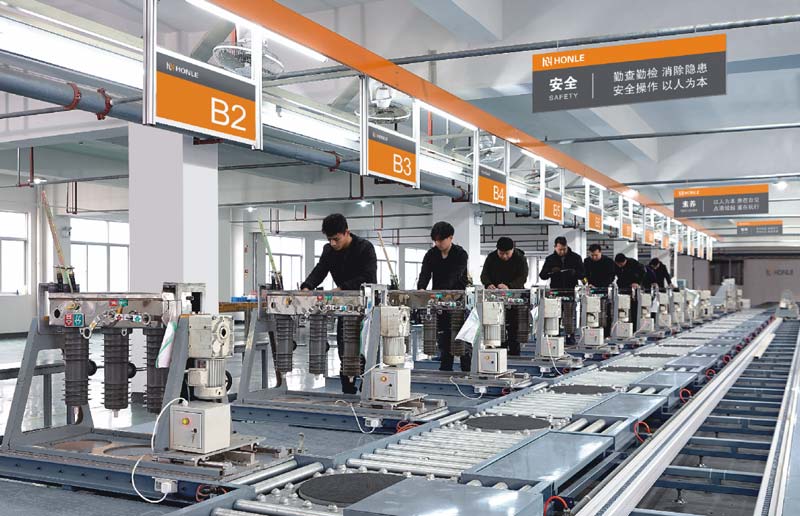

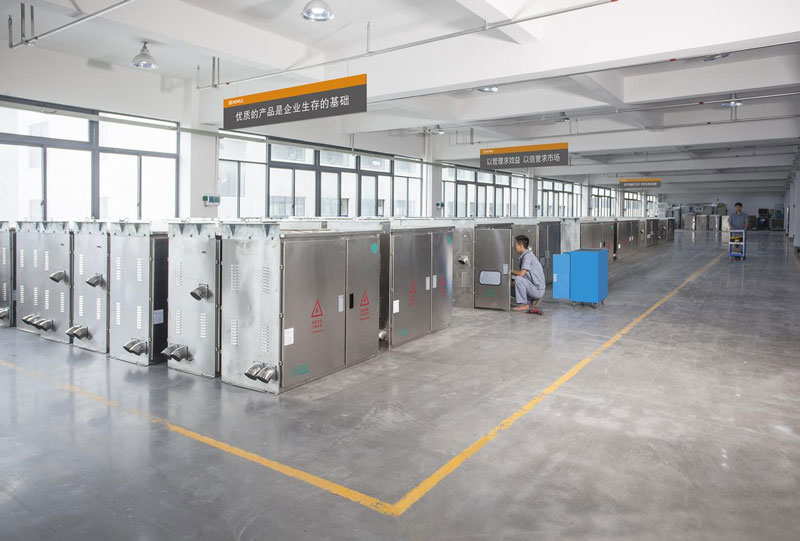

Workshop













Certificates







Team







Customer visiting

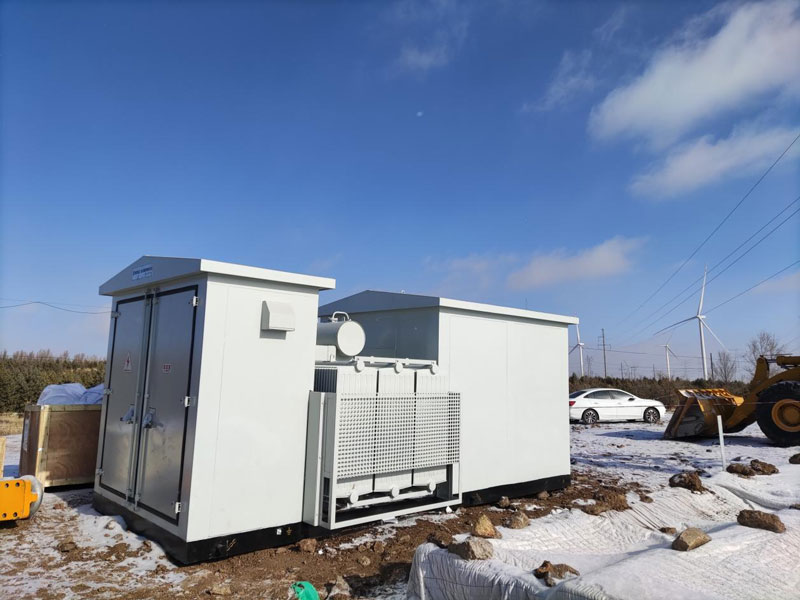

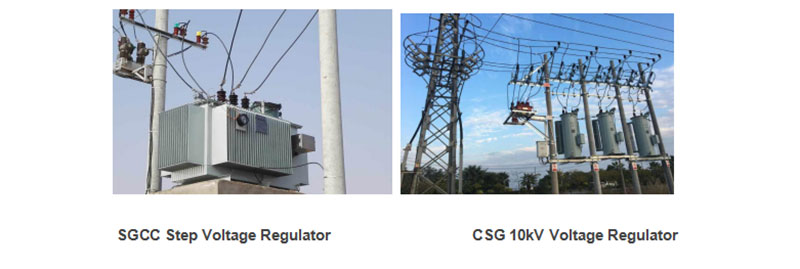

Project
