Combination of High Function Single Phase Stabilizer.
Undistorted Waveform, High Efficiency
Reliable Performance and time-delay, over-voltage
Widely Applied to Any Occasions Requiring Power
Small Volume, Light Weigh

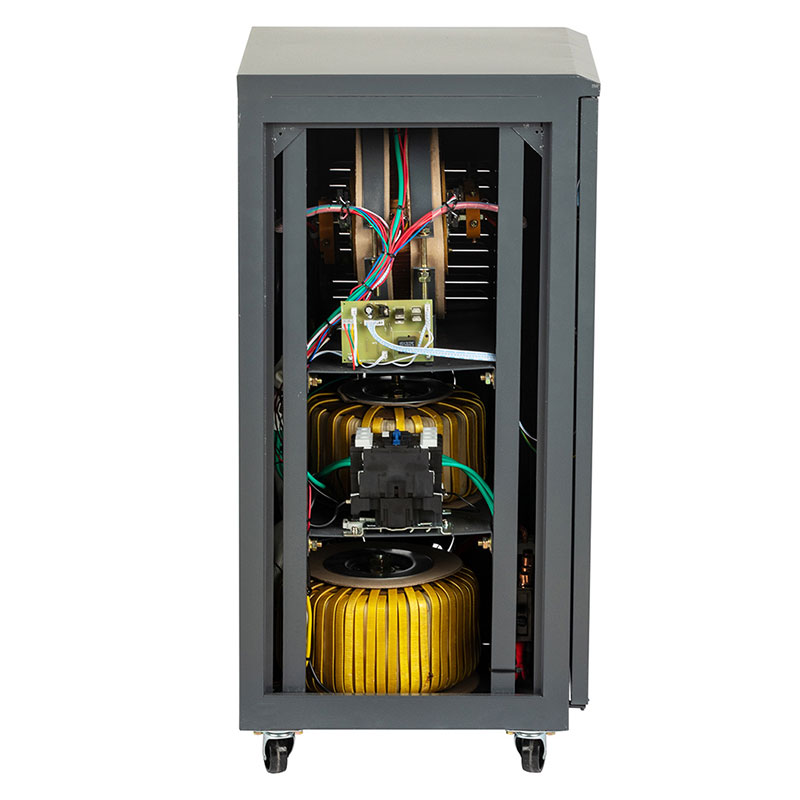

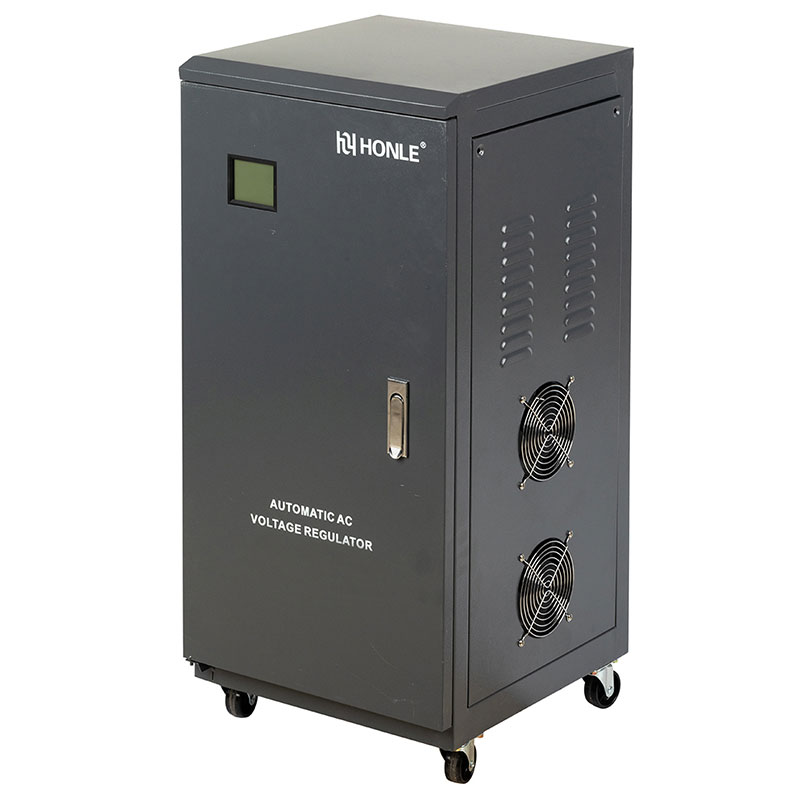

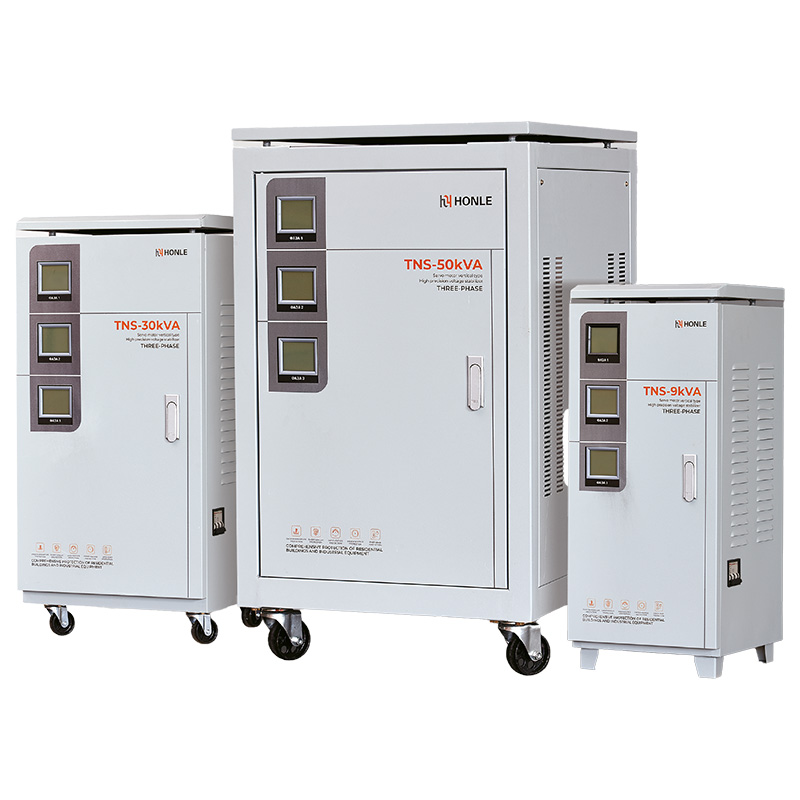

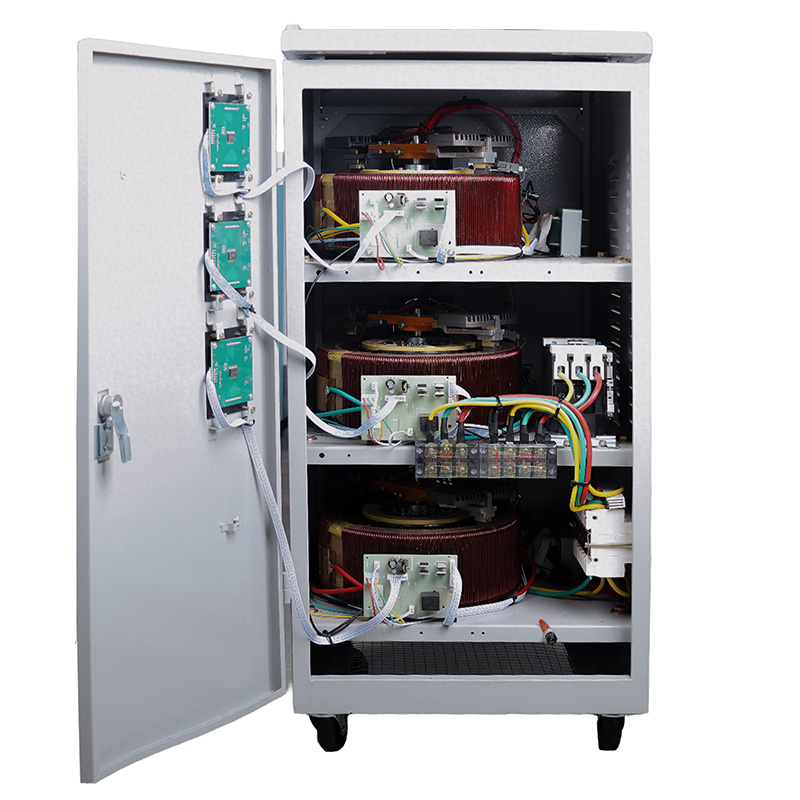

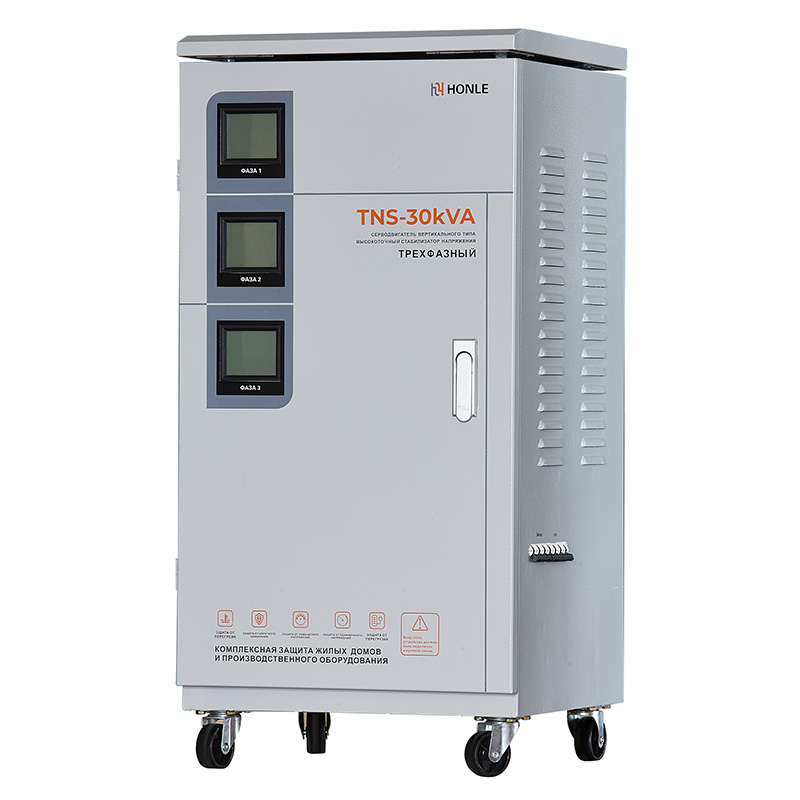

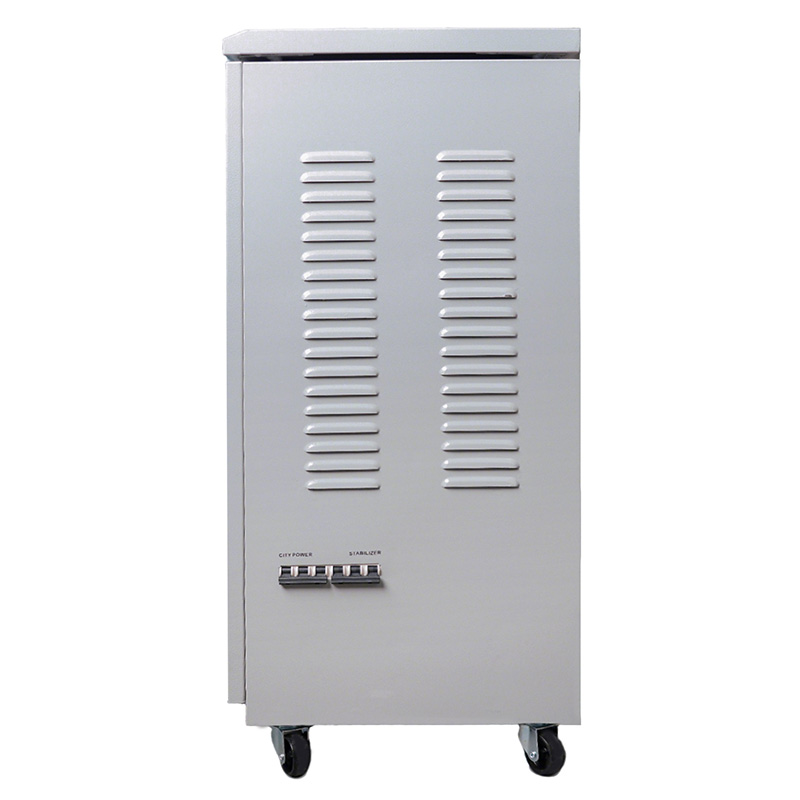

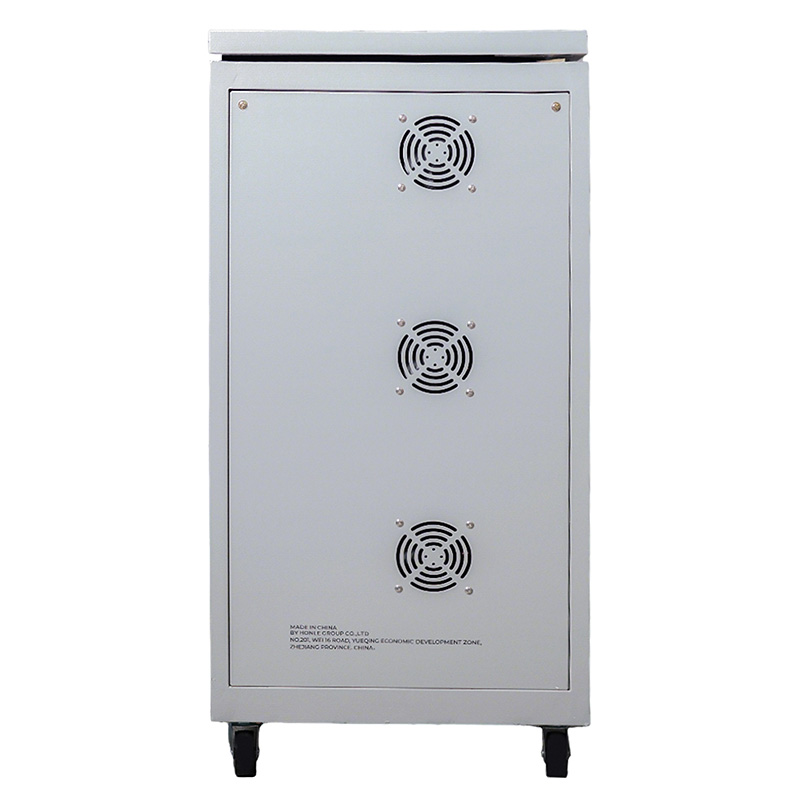

TNS Three-phase high accuracy full automatic AC voltage stabilizer is the combination of high function single phase stabilizer. The incoming power of the power network is three phase four wire system, the output power also three phase four wire with three electric meters to separately indicate three phase and shift switch and voltage meters to shift and survey each phase. This voltage stabilizer has advantages of small volume, light weigh, undistorted waveform, high efficiency, reliable performance, and time-delay, over-voltage, etc, the series of stabilizers driven, of general type, the indeed voltage stabilized sources which can be widely applied to any occasions requiring power to assure the normal operation of your power driven equipment.
Product Technical Parameter |
|||||||||
Input Voltage |
280-450V |
||||||||
Output Voltage |
380V±3% |
||||||||
Phase |
Three-phase |
||||||||
Frequency |
50-60Hz |
||||||||
Debug Time |
26V/Sec |
||||||||
Max Of |
1.5KVA |
3KVA |
4.5KVA |
6KVA |
9KVA |
15KVA |
20KVA |
30KVA |
50KVA |
Output Current |
2A |
4A |
6A |
8A |
12A |
20A |
28A |
40A |
68A |
Delay |
Short delay 5±2 sec |
||||||||
Temperature Rise |
<70K (Full Load) |
||||||||
Ambient temperature |
-5-+40ºC |
||||||||
Wave form distortion |
No Wave Form Distortion |
||||||||
Efficiency |
>95% |
||||||||
Voltage with stand |
National standard |
||||||||
Relative Humidity |
<90% |
Honle Group Co.,Ltd is a manufacturer specialized in developing,producing,marketing as a body to produce electric power including voltage regulators/stabilizers,transformers,switching power and converters etc. Our products have been the best-selling at the Bangladesh,Iran,India,Russia,Indonesia,Thailand and other countries in southeast Asia and Africa area,they are highly praised and welcomed by foreign customers.
Our workshop have a professional production and test equipment, which major in voltage stabilizer for more than 10 years. We always have the idea of voltage stabilizer quality control, technical method innovation,and customers feedback development.
1.We can provide voltage stabilizer sample pieces.
2.We can make the special samples of voltage stabilizer as clients' requirement.
3.We can do everything before delivery. You only need to make the oUPR-r of voltage stabilizer,then box designing,raw material preparing,product producing,delivery and documents preparing all can be done by ourselves.
We has a lot of certificate of the voltage stabilizer quality report, test report,CE certificate, ISO certificate and so on. We can also do the specific certificate for client’s country. Such as CNCA,TUV etc.
