Developed by Our Company Adopts 8-position CPU
Protections Against Time-lag, Over-voltage, Under-voltage, Overload and Excess Temperature and So On
Uses Hanging Type Installation For Requiring Small Area
High Efficiency, No Waveform Distortion, Stable Output Voltage, Less Electric Consumption and Can Work Continuously

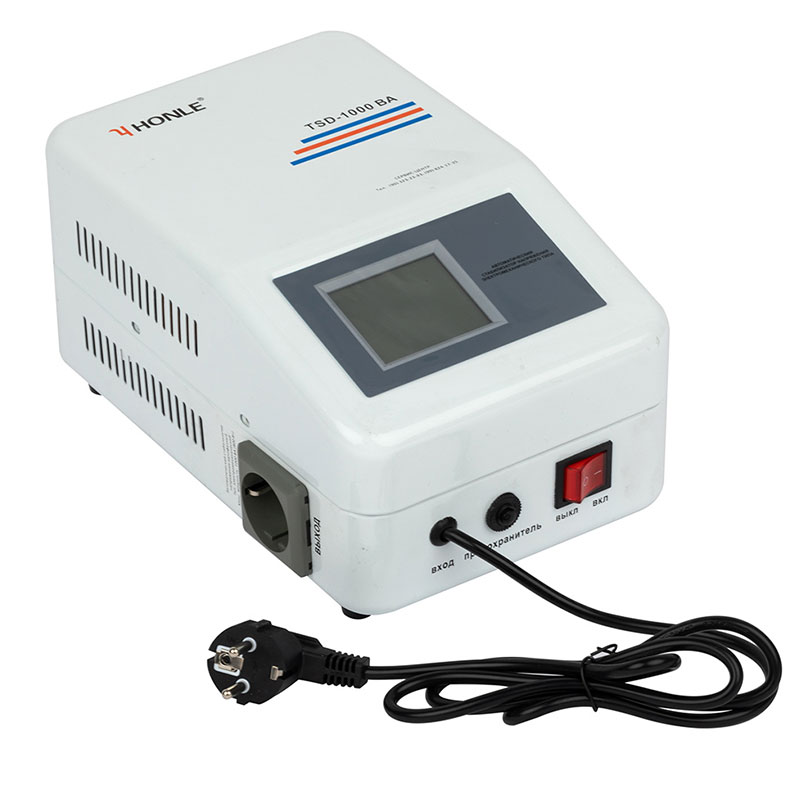

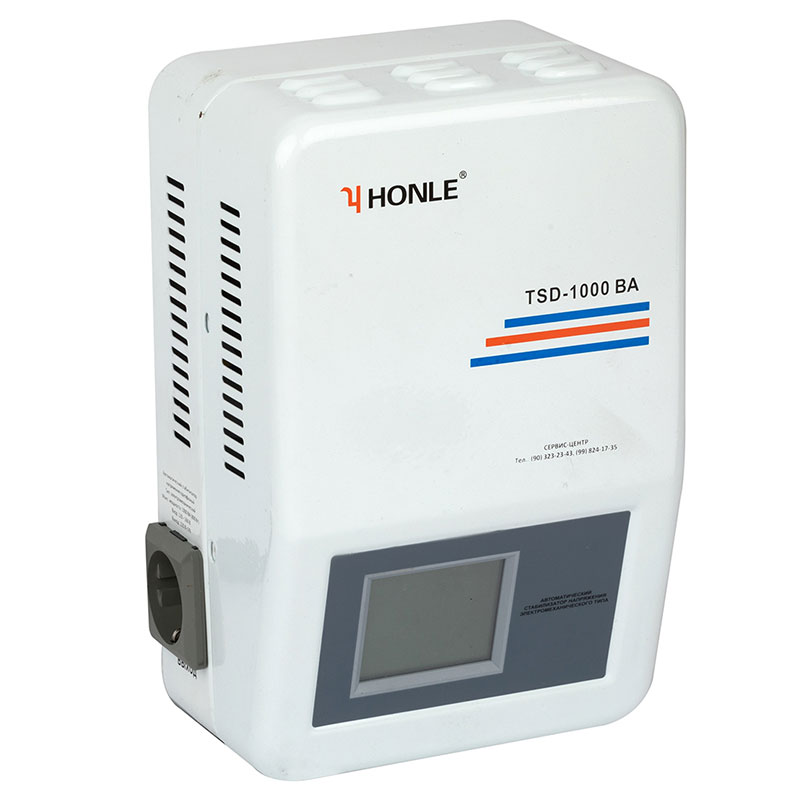

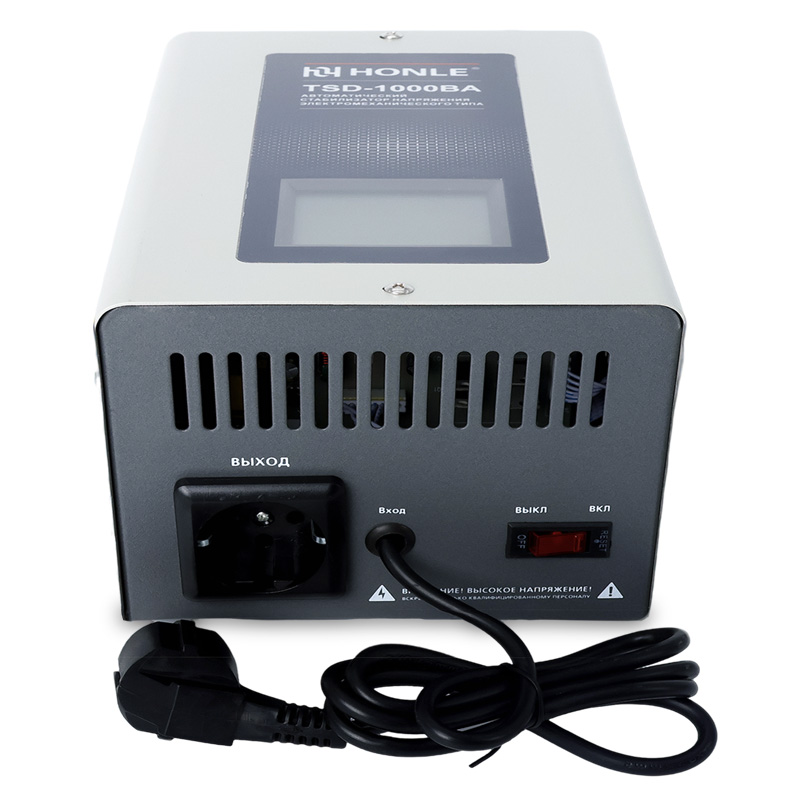

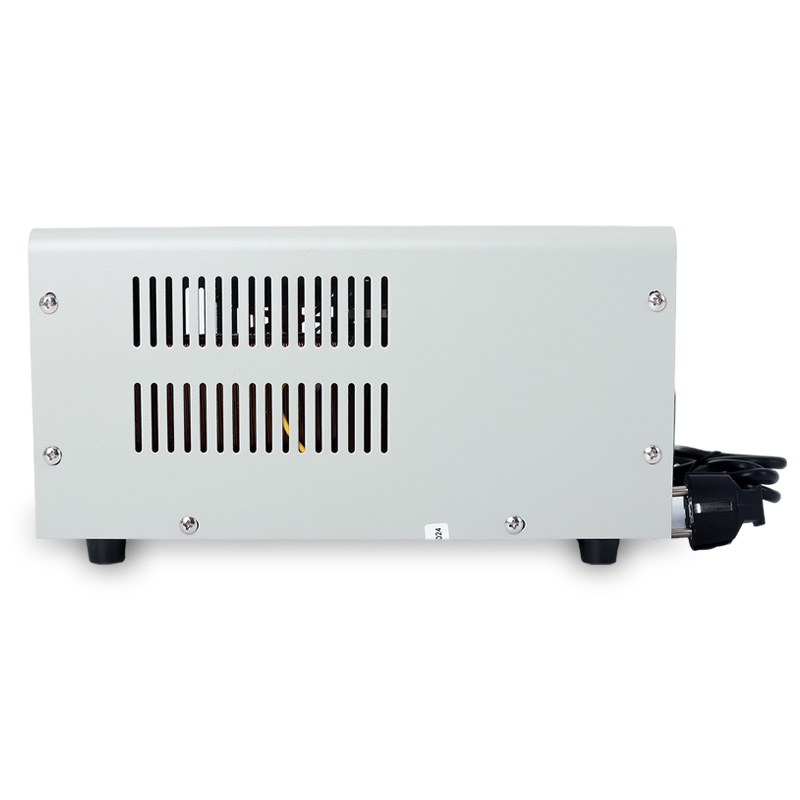

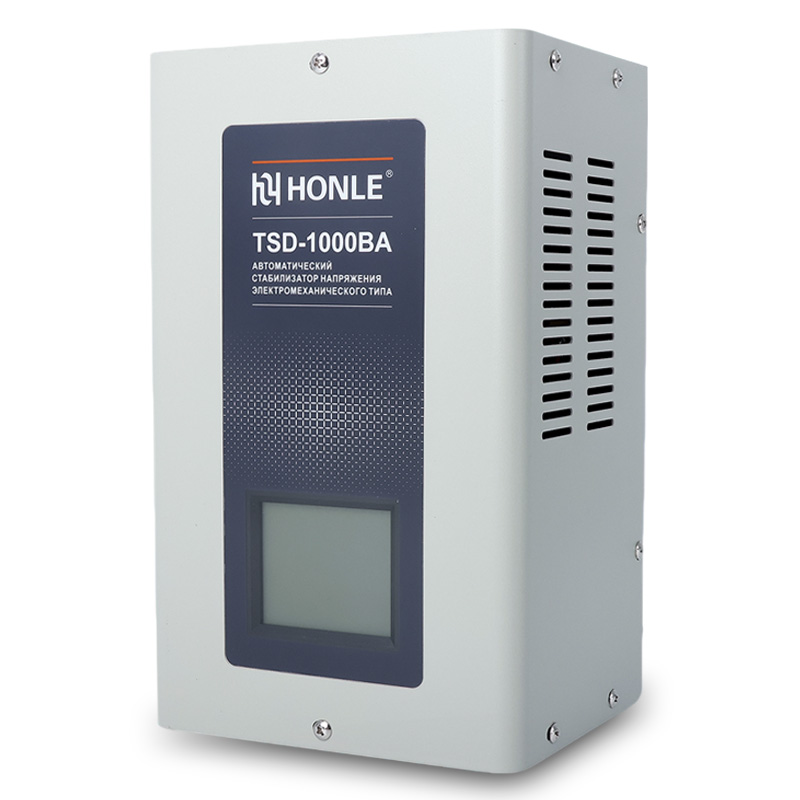

TSD series intelligent AC voltage stabilizer , which is developed by our company adopts 8 - position CPU. It has kinds of protections against time-lag, over-voltage, under-voltage, overload and excess temperature and so on, uses hanging type installation for requiring small area. Which forms the control system with linear integrated circuit, and drive the contact voltage regulator to start regulating by controlling the servo motor. It is provided with delay, over-voltage, under-voltage, over-current and so on protection function to ensure the safety of the power supply. It has the advantage of high efficiency, no waveform distortion, stable output voltage, less electric consumption and can work continuously.
|
Product Parameter of the TSD voltage stabilizer |
|
|
lnput voltage |
Single-phase 150V-270V |
|
Output voltage |
Single-phase 220v |
|
Accuracy of voltage stabilization |
±5% |
|
Frequency |
50Hz/60Hz |
|
Adjusting time |
<1s (when input voltage has a change of 10%) |
|
Efficiency |
>90% |
|
Over-voltage Protection value |
①250Vdelay5S;②275V/delay 2s③295V/delay 1s④305V/0s |
|
Under-voltage Protection value |
180V/delay 5s |
|
Delay time |
Long 180S,short 5s |
|
Overload protection value |
1.05times of rated power/60s |
|
Excess temperature protection value |
100℃ |
|
Ambient temperature |
-5℃--+40℃ |
|
Relative humidity |
≤90% |
|
Waveform distortion |
No additional waveform distortion |
|
Load power factor |
0.8 |
|
Dielectric strength |
1500V/min |
Honle Group Co.,Ltd is a manufacturer specialized in developing,producing,marketing as a body to produce electric power including voltage regulators/stabilizers,transformers,switching power and converters etc. Our products have been the best-selling at the Bangladesh,Iran,India,Russia,Indonesia,Thailand and other countries in southeast Asia and Africa area,they are highly praised and welcomed by foreign customers.
Our workshop have a professional production and test equipment, which major in voltage stabilizer for more than 10 years. We always have the idea of voltage stabilizer quality control, technical method innovation,and customers feedback development.
1.We can provide voltage stabilizer sample pieces.
2.We can make the special samples of voltage stabilizer as clients' requirement.
3.We can do everything before delivery. You only need to make the oUPR-r of voltage stabilizer,then box designing,raw material preparing,product producing,delivery and documents preparing all can be done by ourselves.
We has a lot of certificate of the voltage stabilizer quality report, test report,CE certificate, ISO certificate and so on. We can also do the specific certificate for client’s country. Such as CNCA,TUV etc.
